Ultrasonic Water Meters

Ultrasonic Water Meters

SKU:

Ultrasonic Water Meters

SKU:
Size
Prix régulier $175.00
/
  • International Ship
  • Secure payments
  • 1 en stock
  • En rupture de stock, expédition prochainement
Frais d'expédition calculés lors du passage à la caisse.

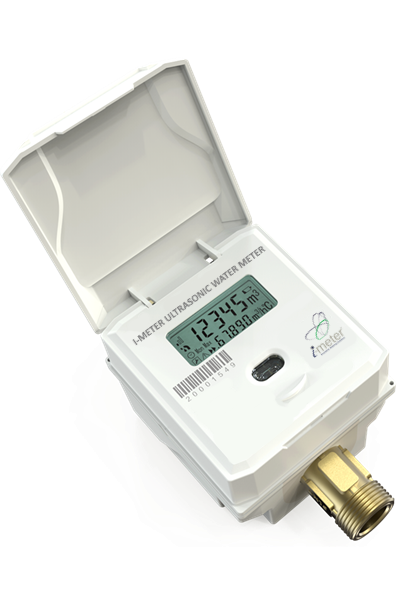

The new i-meter UWM can be installed horizontally or vertically without impacting its accuracy and is available for domestic cold water (T50℃) and domestic hot water (T70℃) services in 15, 20, and 25mm diameters.

Approved and certified under MID European standards and ISO 4064-4:2014.

All ultrasonic water meters are supplied with end pieces and follow NPT (National Pipes Thread).

Product Details

For DN 15-40:

  • MID approval, R250, T50, class 2,
  • Sampling 2 times/second, 1.6MPa, Δp40
  • Battery life time:10 years
  • LCD display: single screen display
  • GB screw meters, with NPT coupling.

For DN 50-300:

  • MID approval, S7 Series, R400,T50,Class 2,
  • 1.6MPa, Δp25
  • Battery life time:10 years
  • Magnetic button, no light touch button,
  • LCD display: single-screen display. Greyboard.
  • DN50-DN100, Nudolar Iron Body with ANSI flange.Class 125
  • Above DN150, Stainless Steel Body with carbon steel ANSI flange. Class 150
  • The cable with the water box.
Pipe Body Length Qp Screw
DN inch mm inch m3/h g/m inch
DN15 ½ 165 6.8 2.5 11 G¾B
DN20 ¾ 190 8 4 17.5 G1B
DN25 1 260 11 6.3 27.7 G1¼B
DN32 260 11 10 44 G1½B
DN40 300 12 16 70 G2B



Pipe Body Length Qp
DN inch mm inch m3/h g/m
DN50 2 200 8 25 110
DN65 200 8 40 176
DN80 3 225 9 63 277
DN100 4 250 10 100 440
DN125 5 250 10 160 704
DN150 6 300 12 250 1100
