i-meter® IM3
i-meter® IM3

i-meter® IM3

SKU: ICI20-i-M3-PO-2

i-meter® IM3

SKU: ICI20-i-M3-PO-2
CTs Included
Regular price $287.00
/
  • International Ship
  • Secure payments
  • In stock, ready to ship
  • Backordered, shipping soon
Shipping calculated at checkout.

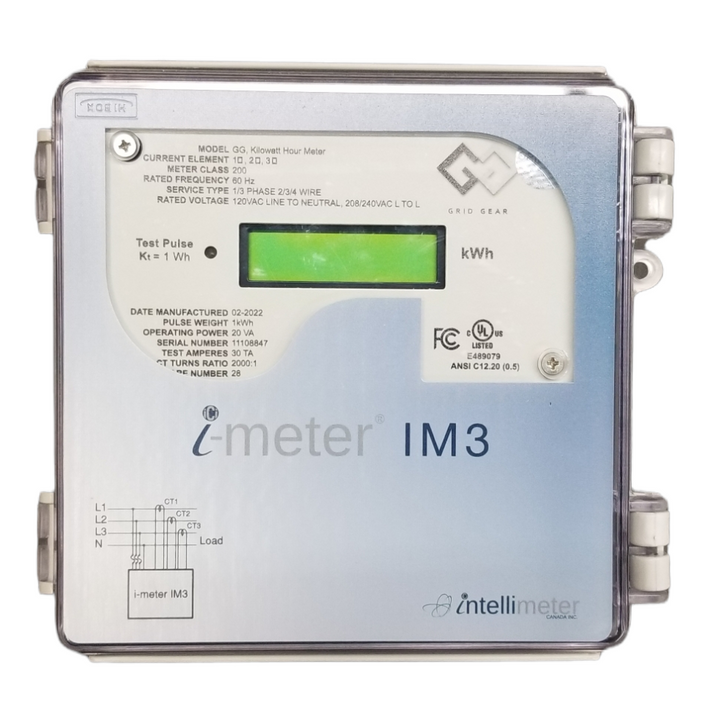

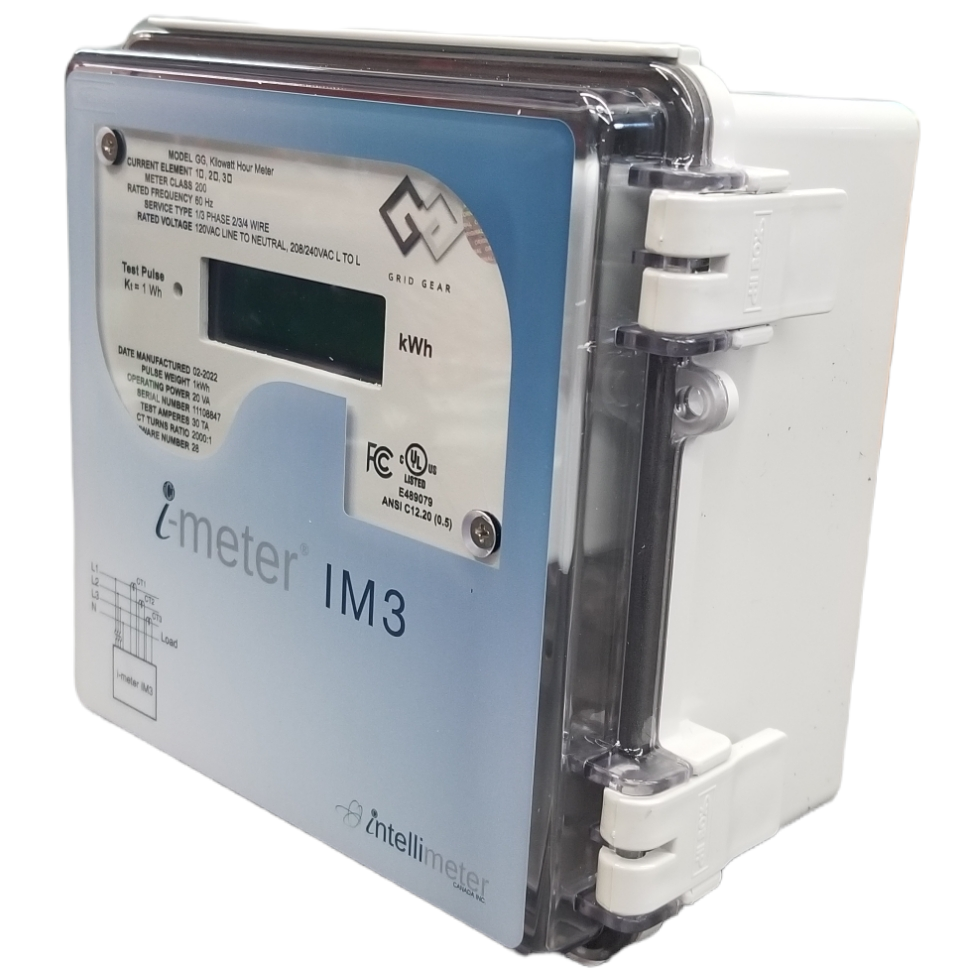

The IM3 is a simple energy-only (kWH) single-channel meter housed in a plastic enclosure complete with a display unit. Can be configured as a single or three-phase meter in three available voltages: 120, 208, and 240 volts. The IM3 uses 100 mAmp current transformers and is also equipped with a pulse frequency output that can be interfaced to an external pulse counting device.

Every purchase of an IM3 includes three 100:0.1A/200:0.1A current transformers (CTs)!

Features:

  • 120, 208, 240 Volts
  • Verification of Power Consumption kWh
  • Adaptable Register Output
  • Pulse Output
  • Revenue Grade / Accurate Measurements
  • Flexible (Standalone or Connected)
  • Ease of Installation and Configuration
  • 3 Element Load Monitoring, single-phase/three-phase
  • Applications: Residential and Commercial

Product Summary :


  Dimensions
6 H x 6 W x 4 D

  Dimensions (Millimeters)

135 H x 153 W x 102 D

  Mounting Options

  Surface Mount

  # of Meters

  1

  Meter Elements(CTs)

  1 to 3

  Voltage

  120, 208, 240

  Service Type:

1Ø2W, 1Ø3W, 3Ø4W, wye

  Current Transformers

  100 mA output

  Instrument Transformers Interface

  Yes

  Memory

  45 days (5 min intervals) kWh with PT2K

  Pulse Output

  Whr

  Communications

  Pulse

  Frequency

  45 to 65 Hz

  Accuracy Class

  1.0

  Real-Time Measurements

  kWh

  Operating Temperature

-20°C to +50°C

  Regulatory Compliance/Approvals

  CLC (US)
